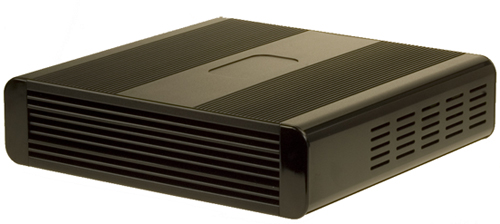

T7 VIA
Our new range of fan less systems, the T7s, are compact, robust, cost effective and can be scaled to your requirements. Finished in Black or Blue, they can be mounted horizontally or vertically (desk footprint is 57x224mm). By utilising TranCool technology, the units are fan less and therefore near silent. Operational costs are minimal - from 15W to 22W (XP Idle) - with a 2.5" HDD spinning. Using a Compact Flash for your OS could provide you with a system at sub 12W.

You can customise your own unit from the options below, we even provide a WI (wide input) PSU module, so that you can power the unit directly from a battery system - with even greater power savings (ie removing the losses in AC/DC power adapters), ie the 15W would reduce to an amazing 11-12W, with XP in Idle.

For optimum power saving we recommend the enabling of S3 power saving, where all units will then only consume approx 2.3W. The recovery from S3 standby to normal user mode can be as little as 3 seconds. Electricity cost savings can be staggering when using a T7 system with S3 enabled.

All the products come with the Tranquil PC Ltd 'Zero Carbon in use' certification. All standard environmental requirements are adhered to ie RoHS.

T7 Entry System (VIA) no CD

Price: £197.00 (Excluding VAT at 17.5%)

Select Colour

Select PSU

Select Main Board

Select RAM

Select HDD or CF

Select Ext USB Slim Optical Drive

Select Wall Bracket

Select OS

Aluminium Keyboard and mouse set (OFFER at £14.49)

Included in price :

VIA ML6000 (600MHz) main board – or upgrade as required.
Internal PSU and External AC/DC adapter
Accessories to provide either horizontal or vertical mounting

Now available with External Optical Drive - optional extra

POWER RATING GUIDE :

Base power (assuming inclusion of AC/DC adapter losses) – in Windows XP (Idle)

	600MHz ME/ML (Eden CPU)	18.5W
	1.5GHz EN (C7 CPU)	16.5W
	1.5GHz VB (C7-M CPU)	11.5W
	Compact Flash device	0.2W
	Or, 2.5” HDD	3.5W

Example is shown below :

	VB 1.5GHz + 60GB 2.5” HDD + 512MB RAM
	XP IDLE	15W
	XP 100% Full Load	21W
	XP (in S3 standby)	2.1W

Physical Specification T7

Dimensions (outer)	224 (d) x 232 (h) x 57 (w) (not incl PC connectors)
Mass - typical MB + RAM + HDD	2.9Kg
Surface area (alloy)	574,000 mm2
Materials in use	Aluminium	92%
	Steel	7% (rear and inner plates)
	Plastic	1% (front covers)
CPU / North Bridge Cooler	TranCool system
Extras supplied	2x infills 2x feet
Mounting	Desk – vertical Desk - horizontal
PSU system	12V in (for desk) via AC/DC W.I. (6V-26V) for battery operation
Features	Fan less operation up to 35W CPU + NB Precision engineering Robust design Internal IR RX to front for media Very small footprint on desk (127cm2) Desk lock facility
EMC	CE & FCC
